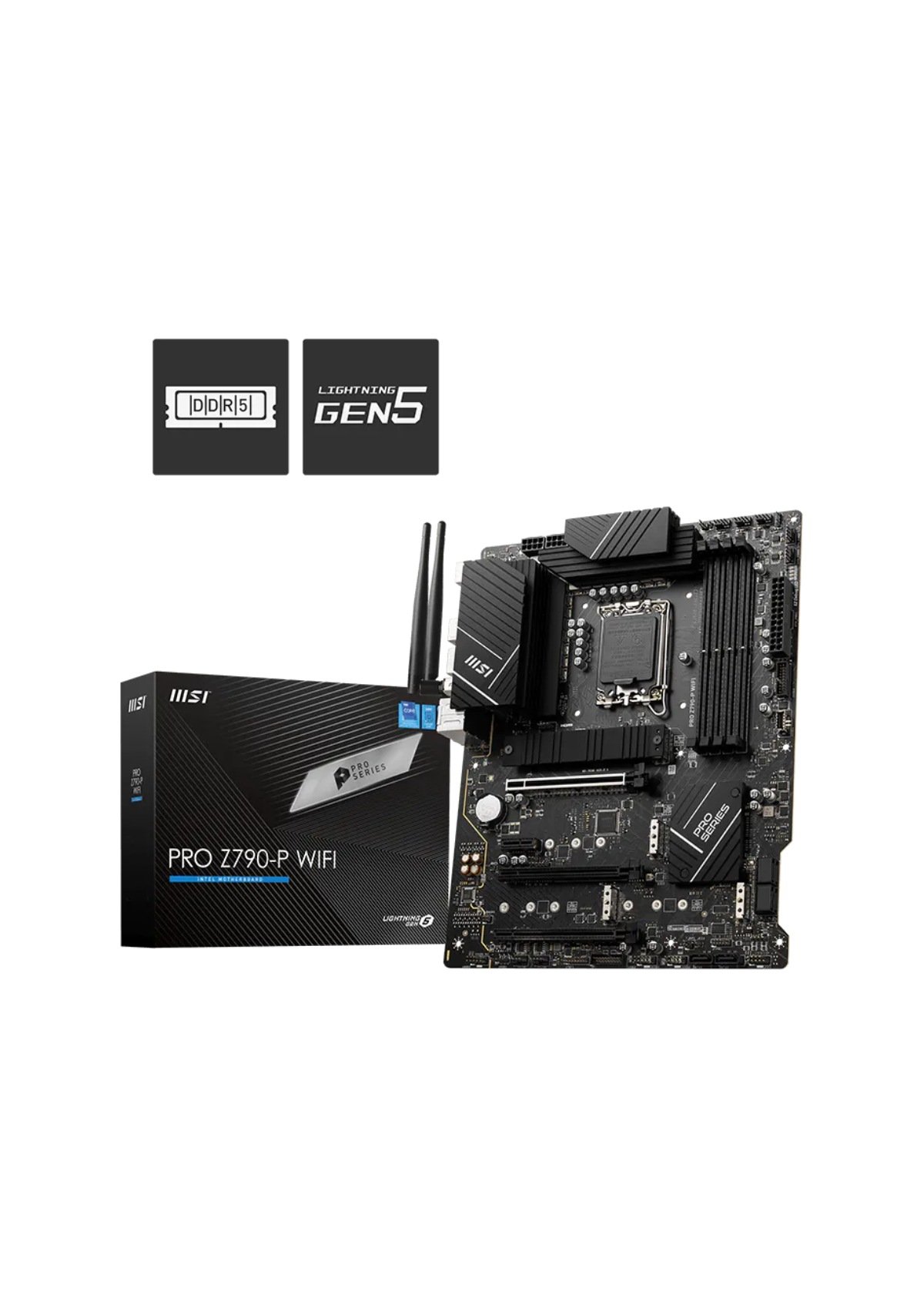

MSI PRO Z790-P WIFI (WiFi 6E) LGA 1700 DDR5 PCIe 5.0 ATX Gaming Motherboard

12th & 13th Gen Intel Core Support with Z790 Chipset Architecture

The MSI PRO Z790-P WIFI (WiFi 6E) is a full-featured ATX motherboard designed to harness the power of Intel’s 12th and 13th generation processors on the LGA 1700 socket. Built around the Intel Z790 Express chipset, this board supports Pentium Gold and Celeron processors, making it versatile for both enthusiast gaming builds and productivity workstations. The robust power delivery and voltage regulation ensure stable operation even under overclocking conditions, providing a solid foundation for demanding gaming and professional applications.

DDR5 Memory with Extreme Overclocking Potential up to 7000+ MHz

This MSI PRO Z790-P WIFI motherboard features four DDR5 DIMM slots capable of accommodating up to 192GB of memory, supporting both JEDEC standards and aggressive overclocking profiles. Standard DDR5 speeds range from 4800 MHz (JEDEC) through to 7000+ MHz for extreme enthusiasts, with intermediate profiles at 5200, 5400, 5600, 6000, 6200, 6400, 6600, and 6800 MHz. When operating in single-channel (1DPC 1R) mode, users can push to DDR5-7000+ MHz, while dual-channel (2DPC 2R) configurations maintain stability at DDR5-5600 MHz. This flexibility allows builders to balance raw speed with stability depending on their specific workload and ambient conditions.

PCIe 5.0 x16 Slot & Multi-Gen M.2 Storage Infrastructure

The MSI PRO Z790-P WIFI integrates a primary PCIe 5.0 x16 slot connected directly to the CPU, delivering maximum bandwidth for modern graphics cards and high-speed NVMe SSDs. Additional expansion slots include a secondary PCIe 4.0 x4 (Chipset) and two PCIe 3.0 x1 slots, giving you flexibility for RAID controllers, capture cards, or network adapters. Four M.2 slots provide ample NVMe storage, supporting the latest Gen4 and Gen5 drives for rapid boot times and game loading. This configuration ensures the MSI PRO Z790-P WIFI (WiFi 6E) can accommodate modern high-bandwidth storage and expansion requirements without bottlenecking.

WiFi 6E, 2.5G Ethernet & Comprehensive USB 3.2 Connectivity

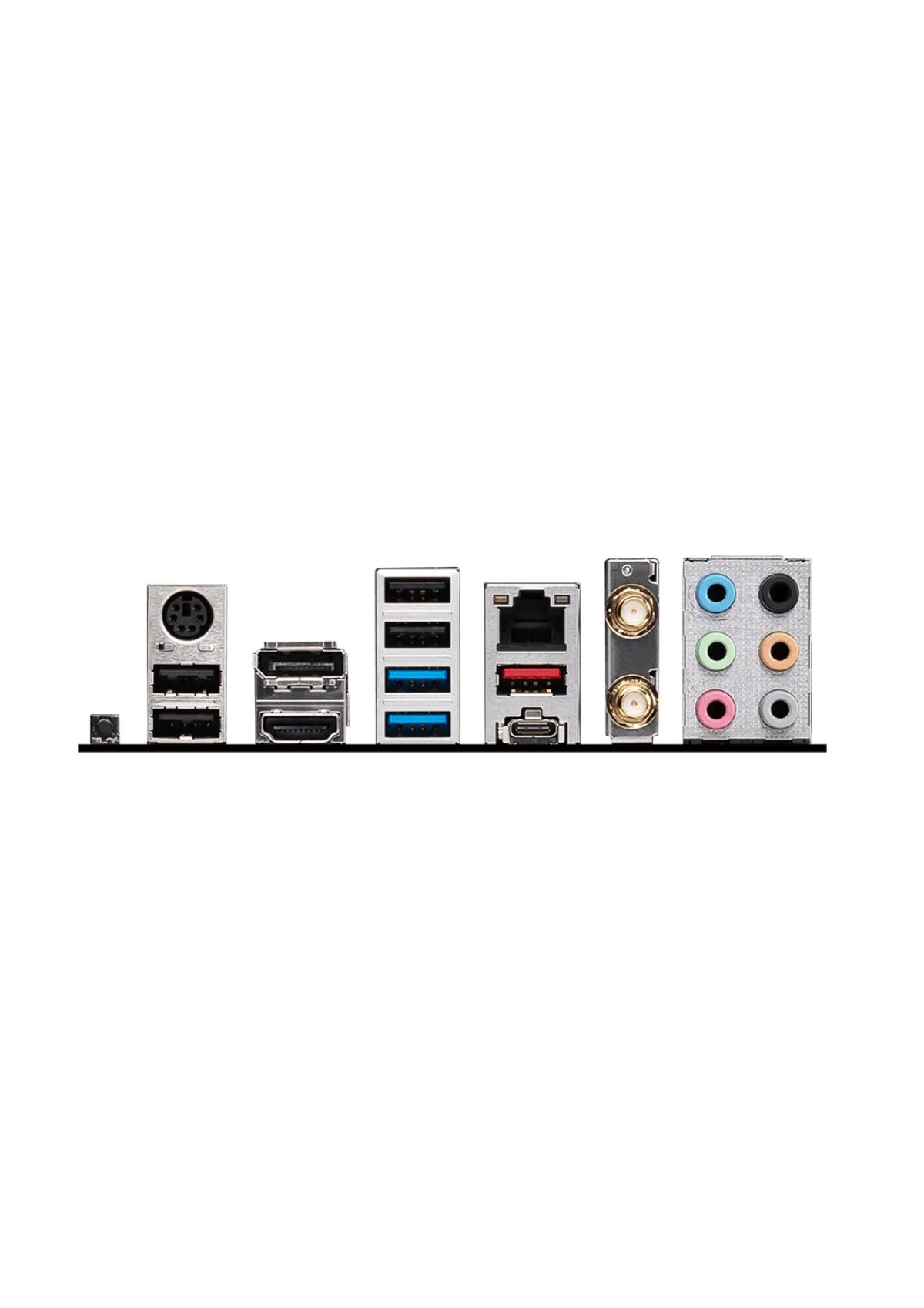

Networking capability is handled by integrated WiFi 6E (802.11ax) technology for wireless speeds up to 9.6 Gbps, complemented by a 2.5G Gigabit Ethernet controller for stable wired connectivity. The rear I/O panel includes USB 3.2 Gen 2×2 Type-C (20 Gbps), USB 3.2 Gen 2 Type-A (10 Gbps), and USB 3.2 Gen 1 Type-A (5 Gbps) ports for fast peripheral and storage access. Display outputs consist of HDMI and DisplayPort, supporting multi-display configurations. Audio connectors and high-definition audio codec support round out the connectivity suite, while the Flash BIOS button allows firmware updates without requiring a CPU installed.

ATX Form Factor with Tool-Free Design Philosophy

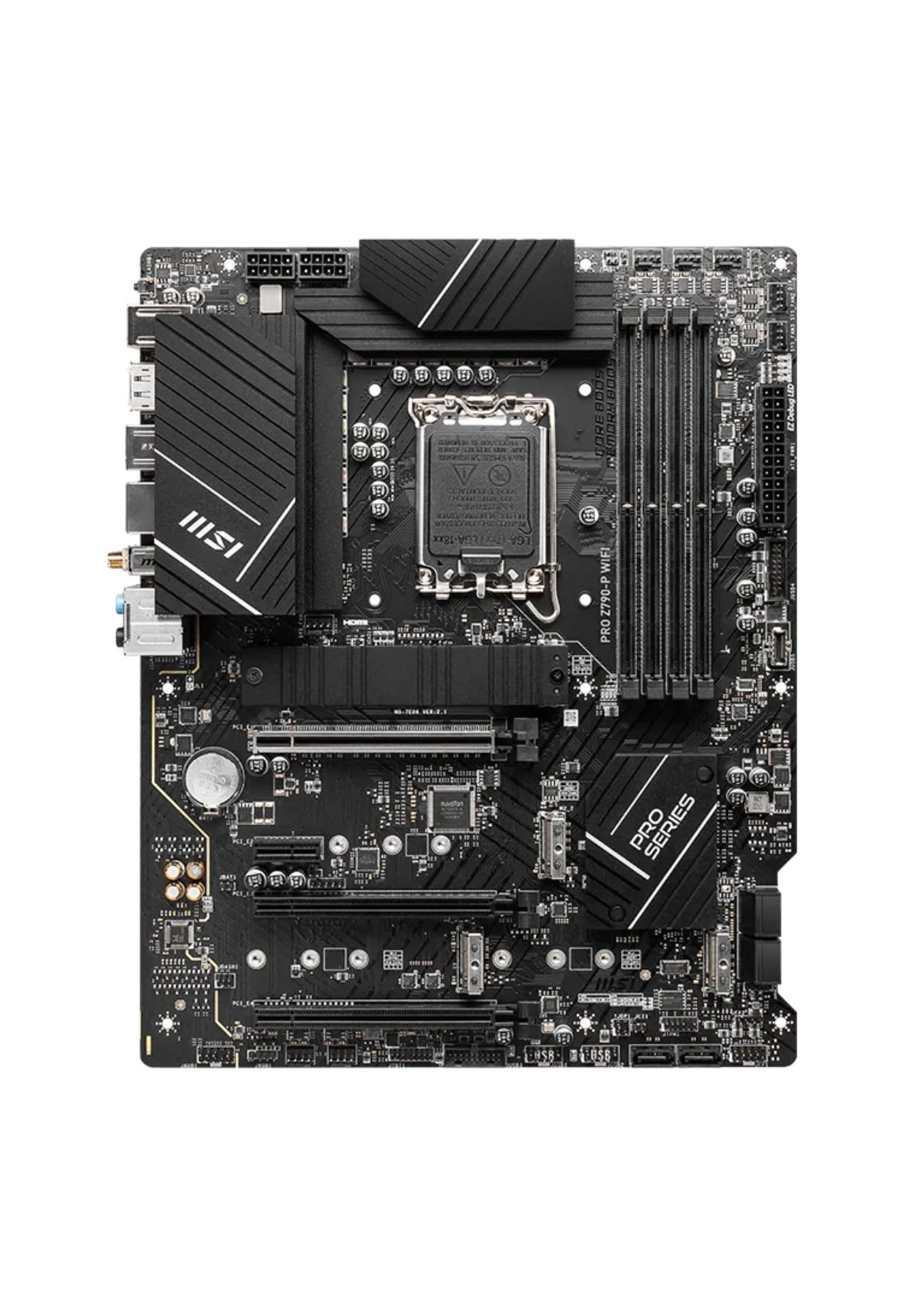

Housed in a standard ATX form factor (305 x 244 mm), the MSI PRO Z790-P WIFI fits seamlessly into most modern tower cases, maximizing cooling airflow and component accessibility. The PCB layout prioritizes user-friendly installation with clear labeling and strategic component placement, reducing build time for enthusiasts and system integrators. Integrated heatsinks on the VRM and chipset dissipate heat efficiently during sustained load or overclocking sessions, ensuring long-term reliability. This MSI PRO Z790-P WIFI (WiFi 6E) motherboard represents an excellent balance of performance, connectivity, and expandability for anyone building or upgrading a high-performance Intel 12th or 13th generation system.
