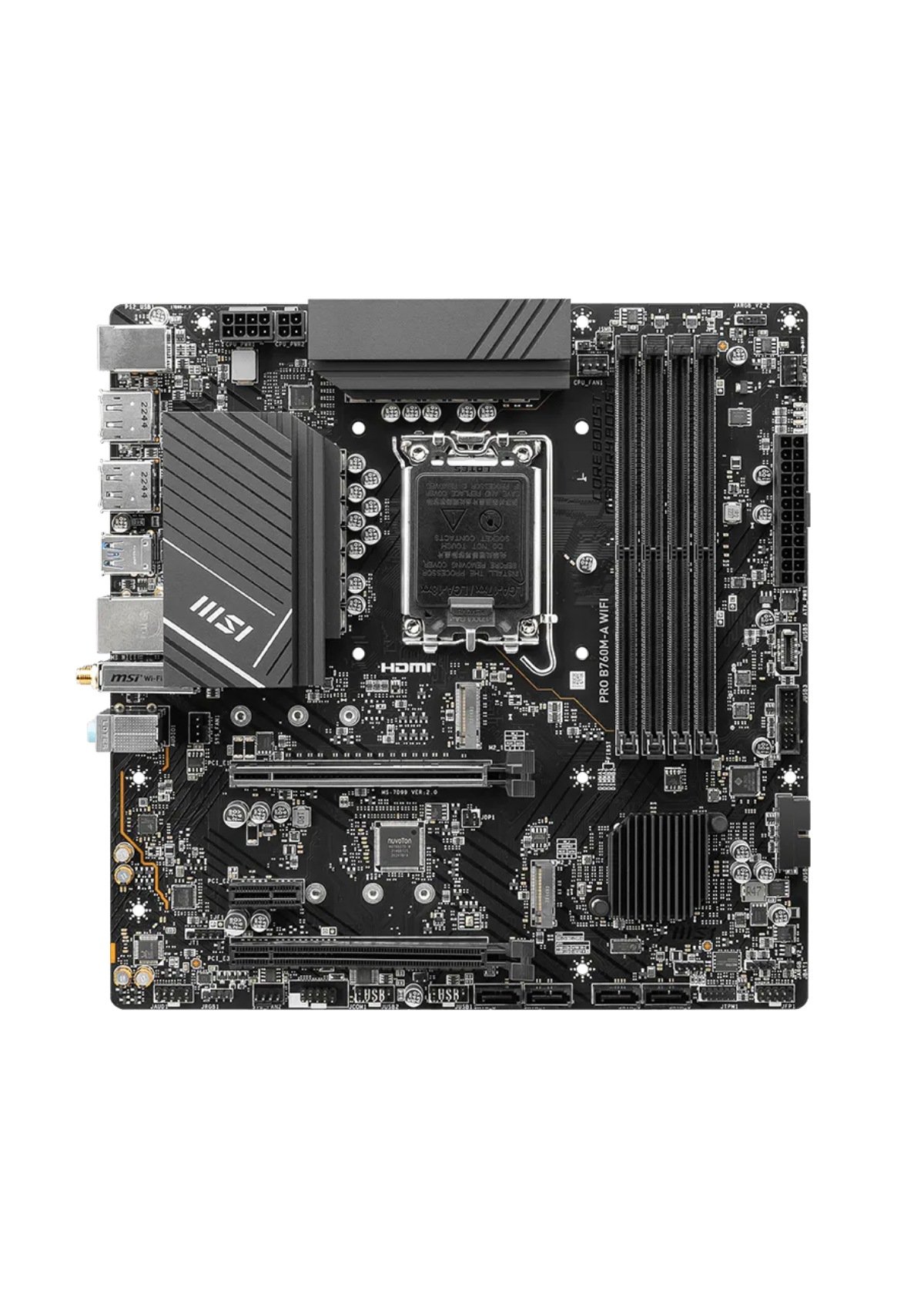

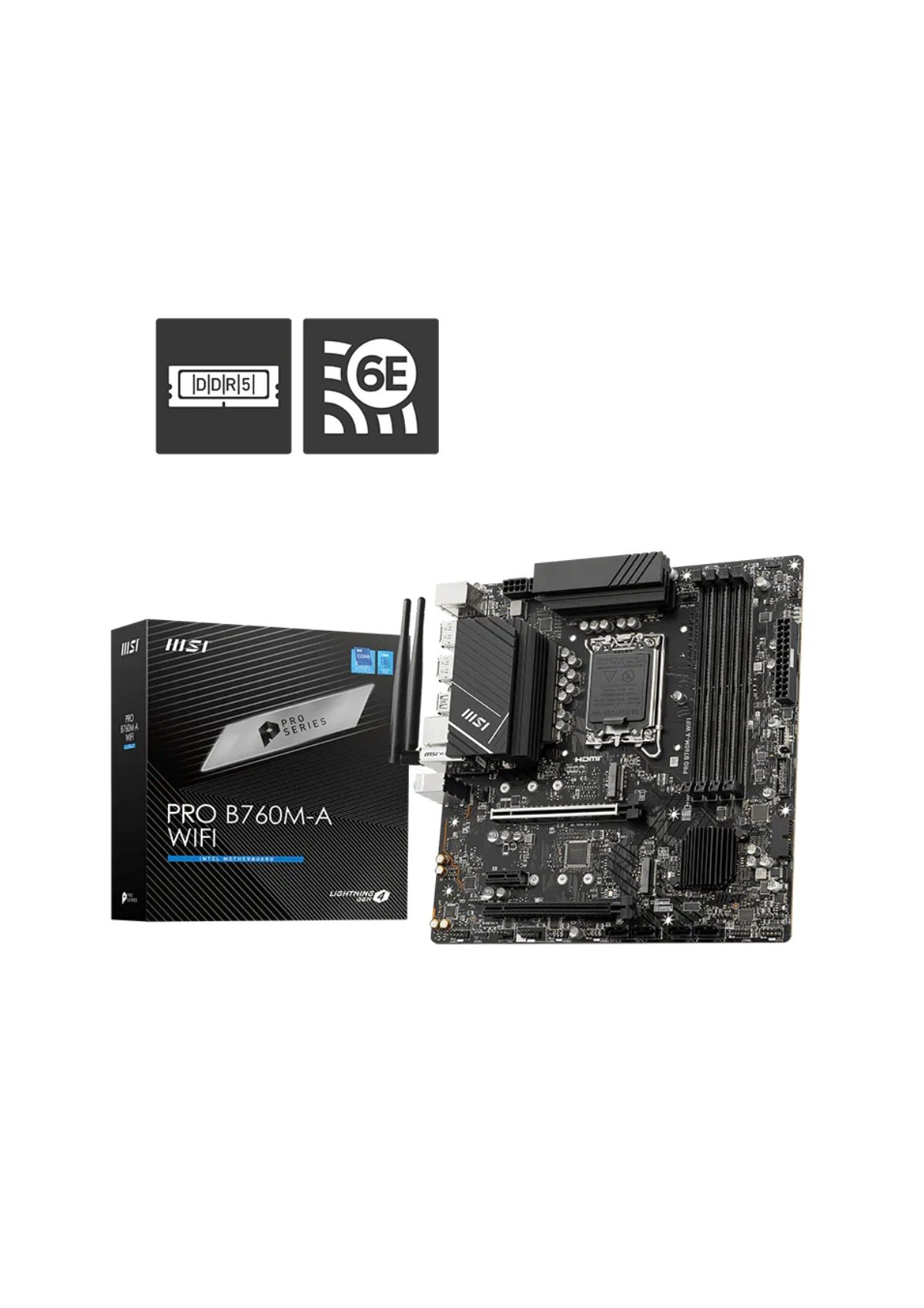

MSI PRO B760M-A (Wi-Fi 6E) mATX Motherboard – LGA 1700 DDR5 PCIe 4.0

Intel 14th/13th/12th Gen LGA 1700 Socket with B760 Chipset Platform

The MSI PRO B760M-A (Wi-Fi 6E), Intel 14th 13th 12th Series, LGA 1700/DDR5/PCIe 4.0/2xM.2 – mATX Gaming MotherBoard is a compact yet feature-rich micro ATX motherboard built on the Intel B760 Express chipset. This board fully supports 12th, 13th, and 14th generation Intel Core processors, as well as Pentium Gold and Celeron CPUs on the LGA 1700 socket, making it an ideal choice for builders seeking compatibility with Intel’s latest desktop CPU lineup without requiring a full-size ATX form factor.

DDR5 Memory Support with High-Speed Overclocking Profiles

Equipped with four DDR5 DIMM slots, the MSI PRO B760M-A supports up to 256GB of total memory capacity and recognizes DDR5 speeds ranging from 4800 MHz (JEDEC standard) to 6800+ MHz in overclocked configurations. Single-DIMM Per Channel (1DPC) single-rank (1R) configurations can reach up to 6800+ MHz, while dual-rank setups max out at 6400+ MHz. This flexibility allows both conservative system builders and enthusiasts to dial in memory speeds that match their CPU, workload requirements, and cooling setup, ensuring stable performance whether running Intel’s stock configurations or aggressive XMP profiles.

Dual PCIe 4.0 M.2 Slots and Mixed-Gen PCIe Expansion

This micro ATX motherboard features two M.2 NVMe slots with full PCIe 4.0 support from the CPU, delivering up to 7.4 GB/s per slot for next-generation SSD speeds. The PCIe expansion layout includes two full-length PCIe x16 slots (primary supports PCIe 4.0 x16 from the CPU, secondary runs at PCIe 3.0 x1 from the chipset) plus one additional PCIe x1 slot fed by chipset PCIe 4.0 at x4 lanes. This configuration accommodates discrete graphics cards, high-speed NVMe expansion cards, WiFi modules, and other expansion peripherals while maintaining full bandwidth for gaming and professional workloads.

Wi-Fi 6E, 2.5G Ethernet, and Full Connectivity Suite

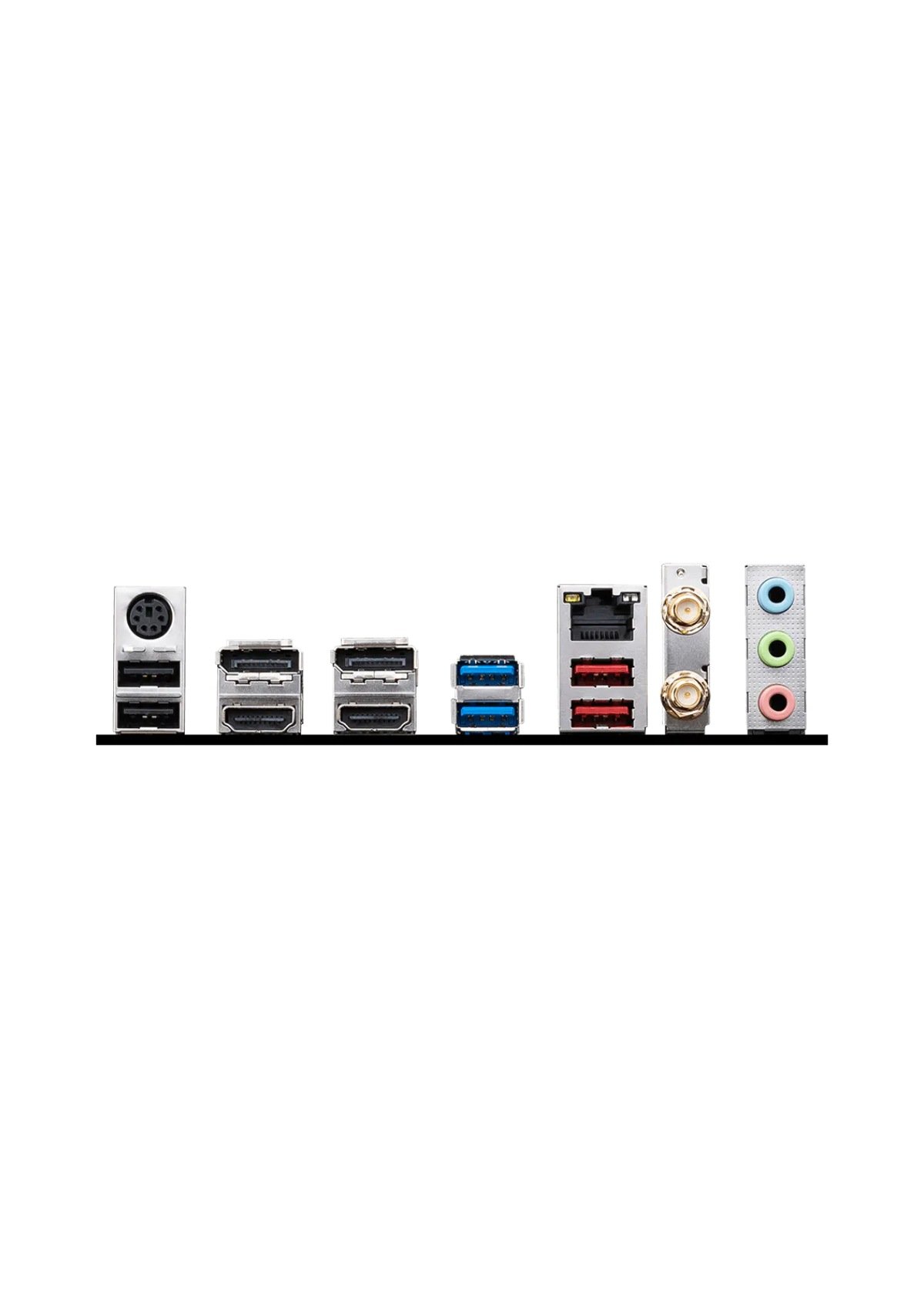

The MSI PRO B760M-A integrates Wi-Fi 6E and Bluetooth for wireless convenience, complemented by a dedicated 2.5G LAN port for wired connectivity. The rear I/O includes USB 3.2 Gen 2 (10 Gbps Type-A), USB 3.2 Gen 1 (5 Gbps Type-A), USB 2.0 headers, HDMI and DisplayPort video outputs for iGPU displays, and a full suite of audio connectors. This comprehensive connectivity makes the board suitable for gaming, content creation, and network-intensive applications while maintaining the compact mATX footprint ideal for smaller PC builds, SFF setups, or minimalist desk-mounted systems.
